General purpose 32bit microcontroller with the world's smallest package size
ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061 ML67Q4050, ML67Q4051, ML67Q4060, and ML67Q4061 are suitable for battery-based applications for its abundant energy saving modes. ML67Q4060 and ML67Q4061 have achieved a minimum package size through the W-CSP technology. ML67Q4050, ML67Q4051, ML67Q4060, and ML67Q4061 run with a single 2.5V power supply, which enables the power supply peripheral circuits to be simplified so as to achieve further downsizing. ML67Q4050, ML67Q4051, ML67Q4060, and ML67Q4061 have a mechanism that protects customer programs and data against theft using JTAG interface illegally. |
Parameter | Specification |
Part Number | ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061 |
CPU core | ARM7TDMI™ |
Operating | 32.7kHz to 33MHz |
Clock | Main clock oscillator (16 to 33MHz) |
Power saving | STANDBY/HALT mode, |
Internal RAM | 16KB |
Internal ROM | 64KB(ML67Q4060/ML67Q4050) |
External memory | ROM, Flash memory, SRAM, SDRAM, I/O device |
Serial I/F | UART×1ch, UART with FIFO×2ch, |
Interrupt | Internal 28, External 6 factors |
Timer | System timer 16bit×1ch |
WDT | 16bit |
AD converter | 10bit×4ch |
DMAC | 2ch |
GPIO | 40bit(ML67Q4060/ML67Q4061) |

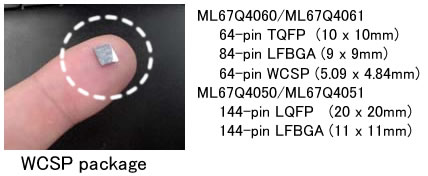

Package Dimension
|
