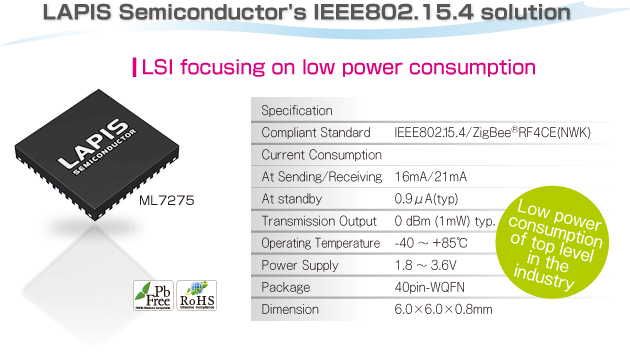

LAPIS Semiconductor's wireless communication module is compliant to IEEE802.15.4 standard. It makes possible to start immediately development and evaluation. LAPIS Semiconductor has the line-up of simple use modules and low power consumption LSI. |
for PHY | for | for | Antenna | Sight | Data | HOST | Command | Power | Operating | Current | Power | Status | |
Yes | Yes | ZigBee® | Pattern Antenna | 30 | 250 | UART | Synchronous | RF4CE | 1.8~ | -40~ | 16 | 1.0 | Samples available |
*Communication distance differs according to built-in equipment and surrounding ambience. |
for PHY | for | for | Antenna | Sight | Data | HOST | Command | Power | Operating | Current | Power | Status |
Yes | Yes | Yes | Chip Antenna | 70 | 38.4 | UART | Original | 2.7~ | -20~ | 30mA | 20µA | Mass Production |
*Communication distance differs according to built-in equipment and surrounding ambience. |
for PHY | for | for | Antenna | Sight | Data | HOST | Command | Power | Operating | Current | Power | Status |
Yes | Yes | S-NWK | Pattern | 30 | 250 | Synchronous | IEEE802.15.4 | 2.1~ | -20~ | 27mA | 2.7µA | Mass Production |
*Communication distance differs according to built-in equipment and surrounding ambience. |

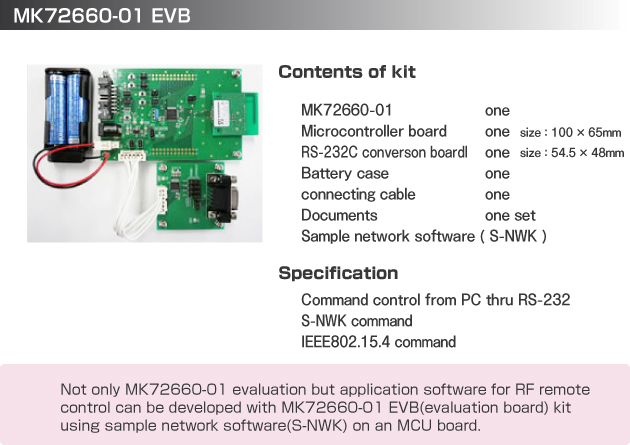

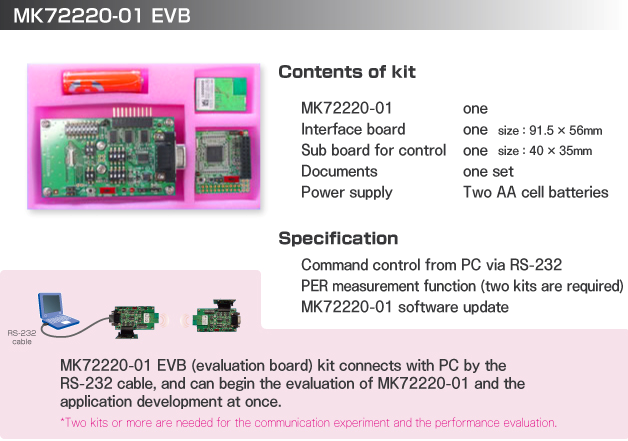

LAPIS Semiconductor's wireless communication module is provided with a starter kit in order to start the evaluatoin and inspection of module and the application development immediately. |
