Specified low power radio station LSI realize ultra low power wireless system
LAPIS Semiconductor offers lineup of LSI which can be used for radio station for telemeter, telecontrol, and data transmission with UHF radio communication. |
Part No. | Compliant | Features |
ML7066 | 426MHz/429MHz transmission/reception LSI. | Useful to 2 systems of 426MHz/429MHz. |
ML7386 | 426MHz transmission LSI | Transmission only LSI |
ML7396 | 920/950MHz transmission/reception LSI | Supports the packet mode of IEEE 802.15.4 d/g. |

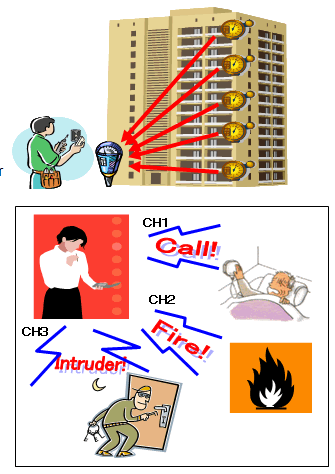

Applications
|
Part No. | ML7066 | ML7386 | ML7396 series |
Frequency Band Width | 426MHz/429MHz | 426MHz*1 | 950MHz*2 |
Compliant | STD-30, STD-T67 | STD-30 | STD-T96 |
Transmission Data Rate | 1,200bps | 2,400bps | 50kbps |
Channel Spacing | 12.5kHz | 12.5kHz/25kHz | 200kHz×n(n=1-4) |
Modulation Method | 2-FSK | 2-FSK/MSK | 2-FSK/MSK |
Transmission Power | 10mW/1mW | 10mW | 20mW/10mW/1mW |
Rx Sensitivity | -116dBm typ.@2400bps | - | -105dBm@100kbps |
Power Supply Voltage | 2.1V to 3.6V | 1.8V to 3.6V | 1.8V to 3.6V |
Operating Temperature | -25°C to 65°C | -25°C to 65°C | -40°C to 85°C |
Package | VQFN48 (7mm2) | WQFN28 (4mm2) | WQFN40 (6mm2) |
Status | In mass production | In mass production | In mass production |
*1: Indicating the characteristic guarantee range. Can be set 315MHz to 450MHz. |
